KOHLER Marine Generators

KOHLER 28EFOZD Marine Generators

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 28kw/35kva; 50Hz
  • Weight: 633 kg (1395 lbs)
  • Length: 1295 mm (51.00 in.)
  • Width: 635 mm (25.00 in.)
  • Height: 810 mm (31.88 in.)
  • Features: Remote start 12-pin connector ;Class H insulation;Multivoltage adjustability;Voltage regulation of ±1.5%;Radio suppression
45EFOZDJ

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 44kw/55kva; 50Hz
  • Weight: 1090 kg (2404 lb)
  • Length: 1633 mm (64.29 in.)
  • Width: 767 mm (30.20 in.)
  • Height: 1015 mm (39.97 in.)
  • Features: Remote control connector; Class H insulation; Reconnectable voltage One- or three-phase reconnectable alternator; Voltage regulation of ±0.5%; Frequency regulation of 0.5%; Heat exchanger cooled configuration includes a wet exhaust bend.
55EFOZDJ

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 55kw/69kVA 50Hz; 3Ph
  • Weight: 1125 kg (2480 lb)
  • Length: 1690 mm (66.54 in.)
  • Width: 767 mm (30.20 in.)
  • Height: 1015 mm (39.97 in.)
  • Features: Remote control connector; Class H insulation; Reconnectable voltage One- or three-phase reconnectable alternator; Voltage regulation of ±0.5%; Frequency regulation of 0.5%; Heat exchanger cooled configuration includes a wet exhaust bend.
80EFOZDJ

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 80kw/100kVA 50Hz; 3Ph
  • Weight:
  • Length: 1829 (72.01)
  • Width: 831 (32.72)
  • Height: 1032 (40.62)
  • Features: Remote control connector; Class H insulation; Reconnectable voltage One- or three-phase reconnectable alternator; Voltage regulation of ±0.5%; Frequency regulation of 0.5%; Heat exchanger cooled configuration includes a wet exhaust bend.
100EFOZDJ

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 100kw/125kVA 50Hz; 3Ph
  • Weight: 1683 kg (3710 lb)
  • Length: 2205 mm (86.81 in.)
  • Width: 971 mm (38.23 in.)
  • Height: 1065 mm (41.92 in.)
  • Features: Remote control connector; Class H insulation; Reconnectable voltage One- or three-phase reconnectable alternator; Voltage regulation of ±0.5%; Frequency regulation of 0.5%; Heat exchanger cooled configuration includes a wet exhaust bend.
125EFOZDJ

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 125kw/156kVA 50Hz; 3Ph
  • Weight: 1719 kg (3789 lb)
  • Length: 2205 mm (86.81 in.)
  • Width: 971 mm (38.23 in.)
  • Height: 1065 mm (41.92 in.)
  • Features: Remote control connector; Class H insulation; Reconnectable voltage One- or three-phase reconnectable alternator; Voltage regulation of ±0.5%; Frequency regulation of 0.5%; Heat exchanger cooled configuration includes a wet exhaust bend.
70EFOZCJ

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 70/88 kW/kVA 50Hz; 3Ph
  • Weight: 1127 kg
  • Length: 1657 mm
  • Width: 753 mm
  • Height: 999 mm
  • Features: * Engine is Environmental Protection Agency (EPA) Tier III compliant (60 Hz model only) * The unique Fast-Responser X excitation system delivers excellent voltage response an* short-circuit capability using a rare-earth permanent magnet-excited alternator * The brushless, rotating-fiel* alternator has broadrange reconnectability * Remote control connector * Class H insulation * Reconnectable voltage * One- or three-phase reconnectable alternator * Voltage regulation of ±0.5% * Frequency regulation of 0.5% * Heat exchanger coole* configuration includes a wet exhaust bend * Keel coole* configuration includes a dry exhaust bend

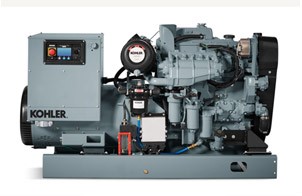

100EFOZCJ

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 100/125 kW/kVA 50Hz; 3Ph
  • Weight: 1458 kg
  • Length: 2068 mm
  • Width: 893 mm
  • Height: 1003 mm
  • Features: Engine is Environmental Protection Agency (EPA) Tier III compliant (60 Hz model only) * The unique Fast-Responser X excitation system delivers excellent voltage response an* short-circuit capability using a rare-earth permanent magnet-excited alternator * The brushless, rotating-fiel* alternator has broadrange reconnectability

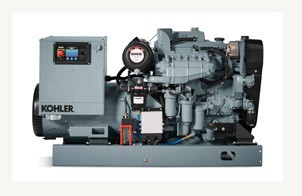

125EFOZCJ

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 125/156 kW/kVA 50Hz; 3Ph
  • Weight: 1530 kg
  • Length: 2091 mm
  • Width: 893 mm
  • Height: 1003 mm
  • Features: Prime power rated; Superior KOHLER Fast-Response® PMG generator ends; Class H insulation; 12-lead reconnectable alternator; The generator complies with NEMA MG1, IEEE, and ANSI standards for temperature rise and motor starting.; The alternator uses a permanent-magnet, Fast-Response® excitation system.; Superior voltage waveform from a two-thirds pitch stator and skewed rotor.

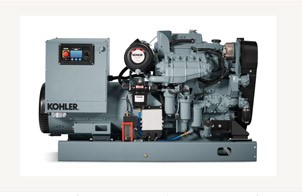

175EFOZCJ

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 175/219 kW/kVA 50Hz; 3Ph
  • Weight: 2006 kg
  • Length: 2490 mm
  • Width: 970 mm
  • Height: 1086 mm
  • Features: Prime power rated; Superior Kohler Fast-Response® PMG excitation system; Class H insulation; 12-lead reconnectable alternator; The generator complies with NEMA MG1, IEEE, and ANSI standards for temperature rise and motor starting.; The alternator uses a permanent-magnet, Fast-Response® excitation system.; The alternator has a two-thirds pitch stator and skewed rotor.;

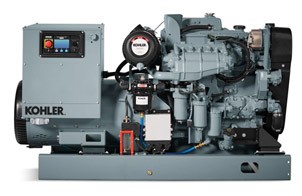

450EFOZCS

Specifications :

  • Brand: Kohler Power Systems
  • Capacity: 452/565 kW/kVA 50Hz; 3Ph
  • Weight: 3727 kg
  • Length: 2862 mm
  • Width: 1335 mm
  • Height: 1308 mm
  • Features: Environmental Protection Agency (EPA) Tier II compliant (heat exchanger model only) * IMO Tier II compliant * EU stage IIIA compliant * Permanent magnet-excite* alternator * Seale* double-bearing alternator * Frame-in-frame ski* design * Class H insulation with EG43 marinization treatment * Isolate* ground * Voltage regulation of 2% * Frequency regulation of 0.5%

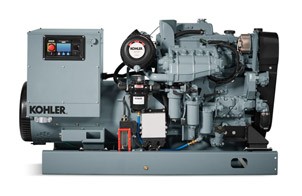

300EFOZCS

Specifications :

  • Brand: 300/375 kW/kVA 50Hz; 3Ph
  • Capacity:
  • Weight: 3031 kg
  • Length: 2784 mm
  • Width: 1292 mm
  • Height: 1308 mm
  • Features: Environmental Protection Agency (EPA) Tier II compliant (heat exchanger model only)

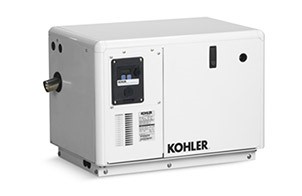

5EFKOD / 6EKOD

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 5/5 kW/kVA 50Hz; 6/6 kW/kVA 60Hz; 1Ph
  • Weight: 222 Kg (490 lb)
  • Length: 780 mm (30.71 in.)
  • Width: 528 mm (20.79 in.)
  • Height: 559 mm (22.01 in.)
  • Features: Remote start 12-pin connector; Class H insulation; Multivoltage adjustability; Voltage regulation of 1.0%; Radio suppression

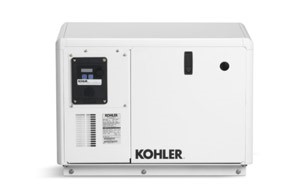

7EFKOZD / 9EKOZD

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 7/7 kW/kVA 50Hz; 8.5/8.5 kW/kVA 60Hz; 1Ph
  • Weight: 249 Kg (548 lb)
  • Length: 865 mm (34.06 in.)
  • Width: 528 mm (20.79 in.)
  • Height: 559 mm (22.01 in.)
  • Features: Remote start 12-pin connector; Class H insulation; Multivoltage adjustability; Voltage regulation of 1.0%; Radio suppression
9EFKOZD / 11EKOZD

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 9/9 kW/kVA 50Hz; 11/11 kW/kVA 60Hz; 1Ph
  • Weight: 279 Kg (616 lb)
  • Length: 960 mm (37.80 in.)
  • Width: 528 mm (20.79 in.)
  • Height: 559 mm (22.01 in.)
  • Features: Remote start 12-pin connector; Class H insulation; Multivoltage adjustability; Voltage regulation of 1.0%; Radio suppression
12EFKOZD / 14EKOZD

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 12/12 kW/kVA 50Hz; 14/14 kW/kVA 60Hz; 1Ph
  • Weight: 398 Kg (877 lb)
  • Length: 1064 mm (41.89 in.)
  • Width: 652.5 mm (25.69 in.)
  • Height: 711 mm (27.99 in.)
  • Features: Class H insulation; Multivoltage adjustability; Voltage regulation of 1.0%; Radio suppression

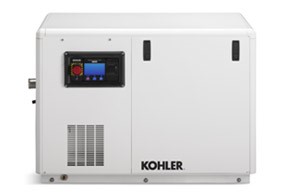

13.5EFKOZD / 16EKOZD

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 13.5/13.5 kW/kVA 50Hz; 15/15 kW/kVA 60Hz; 1Ph
  • Weight: 406 Kg (896 lb)
  • Length: 1064 mm (41.89 in.)
  • Width: 652.5 mm (25.69 in.)
  • Height: 711 mm (27.99 in.)
  • Features: Class H insulation; Multivoltage adjustability; Voltage regulation of 1.0%; Radio suppression
17EFKOZD

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 17/21.3 kW/kVA 50Hz; 3Ph
  • Weight: 480 Kg (1059 lb)
  • Length: 1197 mm (47.12 in.)
  • Width: 652.5 mm (25.69 in.)
  • Height: 711 mm (27.99 in.)
  • Features: Class H insulation; Multivoltage adjustability; Voltage regulation of 1.0%; Radio suppression
18EFKOZD / 21EKOZD

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 18/18 kW/kVA 50Hz; 21/21 kW/kVA 60Hz; 1Ph
  • Weight: 480 Kg (1059 lb)
  • Length: 1197 mm (47.12 in.)
  • Width: 652.5 mm (25.69 in.)
  • Height: 711 mm (27.99 in.)
  • Features: Class H insulation; Multivoltage adjustability; Voltage regulation of 1.0%; Radio suppression
20.5EFKOZD / 24EKOZD

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 20.5/20.5kW/kVA 50Hz; 24/24kW/kVA 60Hz; 1Ph;3Ph
  • Weight: 489 Kg (1078 lb)
  • Length: 1197 mm (47.12 in.)
  • Width: 652.5 mm (25.69 in.)
  • Height: 711 mm (27.99 in.)
  • Features: Class H insulation; Multivoltage adjustability; Voltage regulation of 1.0%; Radio suppression

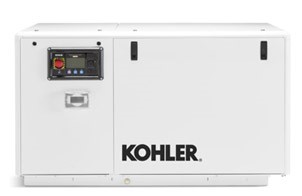

28EFKOZD / 32EKOZD

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 28/28kW/kVA 50Hz; 32/32kW/kVA 60Hz; 1Ph;3Ph
  • Weight: 607 Kg (1339 lb)
  • Length: 1303 mm (51.30 in.)
  • Width: 661 mm (26.04 in.)
  • Height: 778 mm (30.64 in.)
  • Features: Class H insulation; Multivoltage adjustability; Voltage regulation of 1.0%; Radio suppression
35EFKOZD

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 35/44kW/kVA 50Hz; 3Ph
  • Weight: 637 Kg (1339 lb)
  • Length: 1354 mm (53.31 in.)
  • Width: 661 mm (26.04 in.)
  • Height: 778 mm (30.64 in.)
  • Features: The unique Fast-Responset X excitation system delivers excellent voltage response and short-circuit capability using a rare-earth permanent magnet-excited alternator; Class H insulation; Multivoltage adjustability;

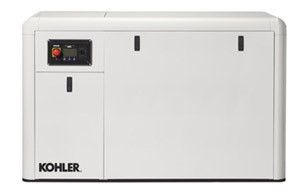

70EFOZDJ

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 70/88kW/kVA 50Hz; 3Ph
  • Weight: 1270 Kg (2800 lb)
  • Length: 1754 mm (69.06 in.)
  • Width: 831 mm (32.72 in.)
  • Height: 1032 mm (40.62 in.)
  • Features: Engine is Environmental Protection Agency (EPA) Tier III compliant (60 Hz model only) The unique Fast-Responset X excitation system delivers excellent voltage response and short-circuit capability using a rare-earth permanent magnet-excited alternator
175EFOZDJ

Specifications :

  • Brand: KOHLER POWER SYSTEMS
  • Capacity: 175/219kW/kVA 50Hz; 3Ph
  • Weight: 2147 Kg (4733 lb)
  • Length: 2661 mm (104.76 in.)
  • Width: 1048 mm (41.26 in.)
  • Height: 1174 mm (46.21 in.)
  • Features: Engine is Environmental Protection Agency (EPA) Tier III compliant (60 Hz model only) Superior Kohler Fast-Responser PMG excitation system
